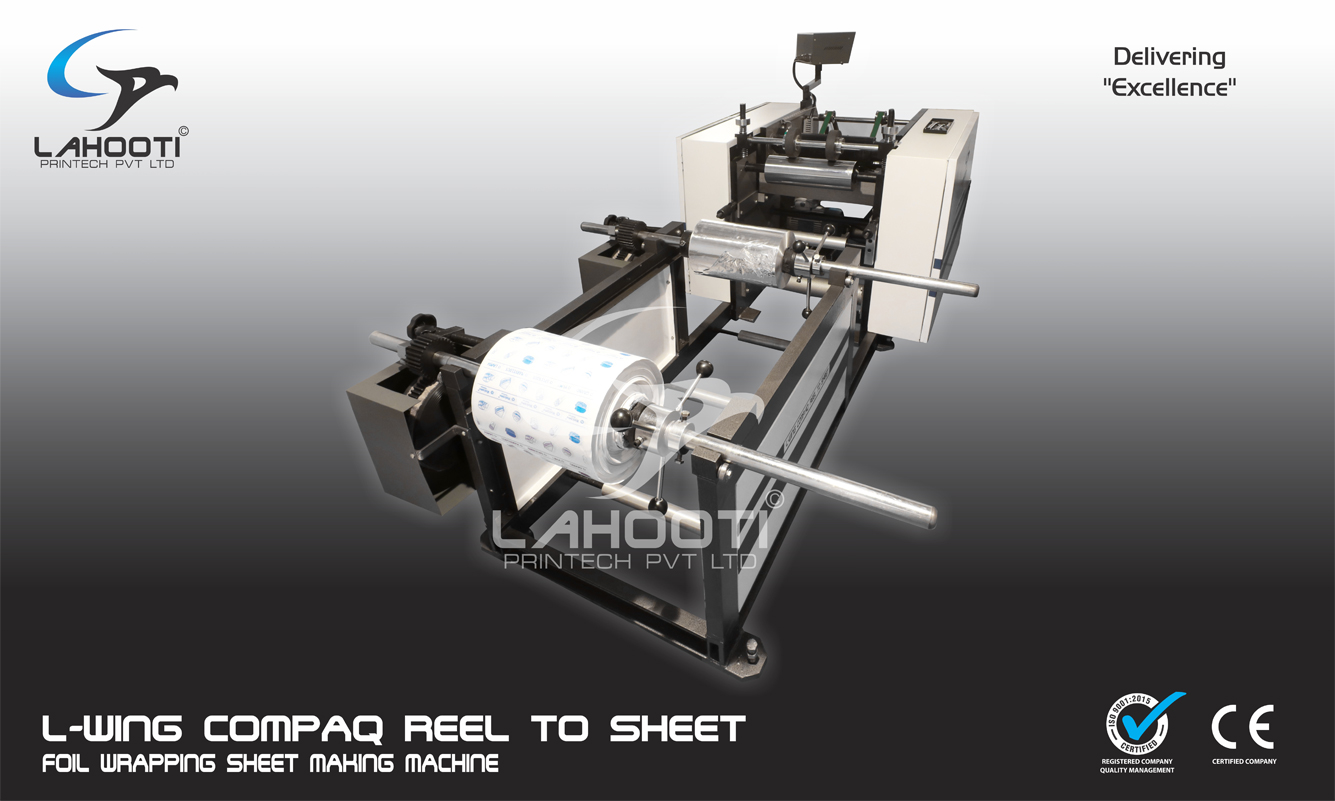

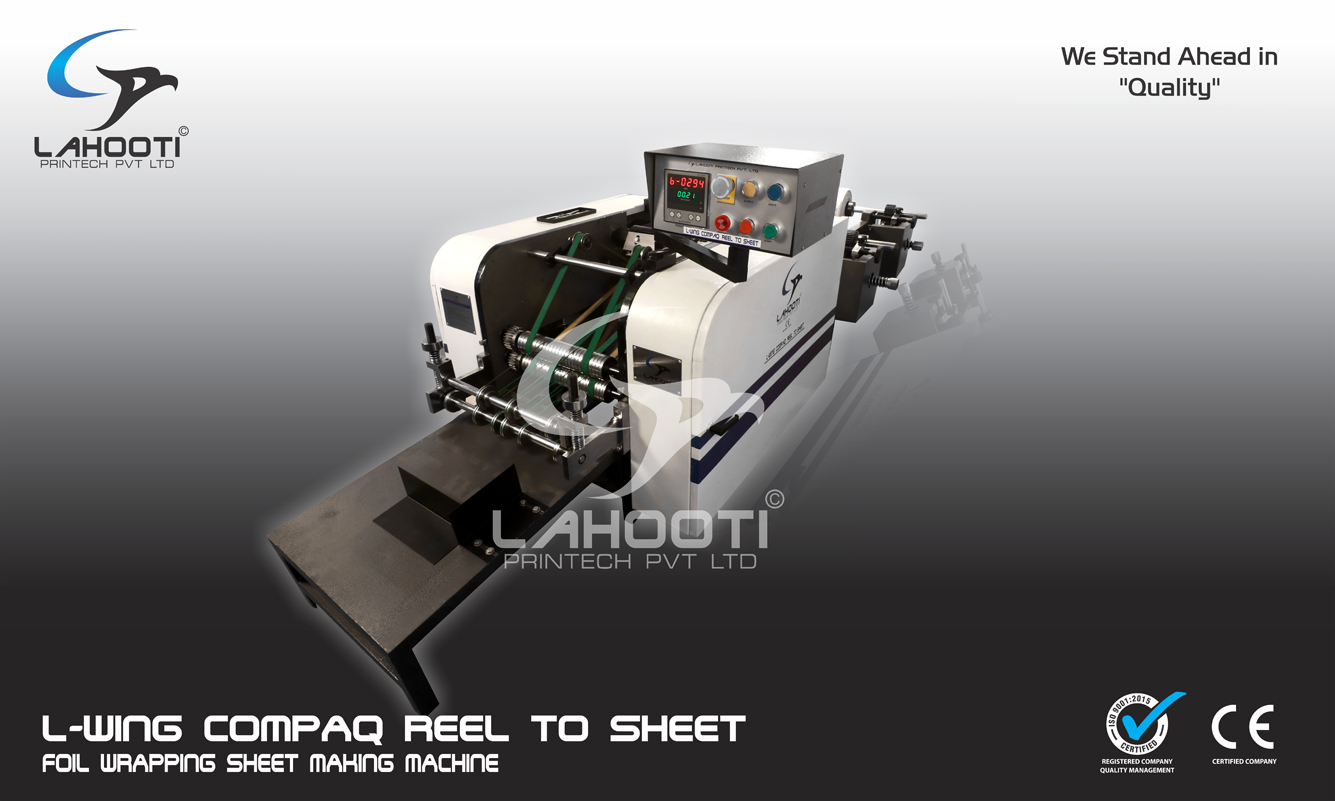

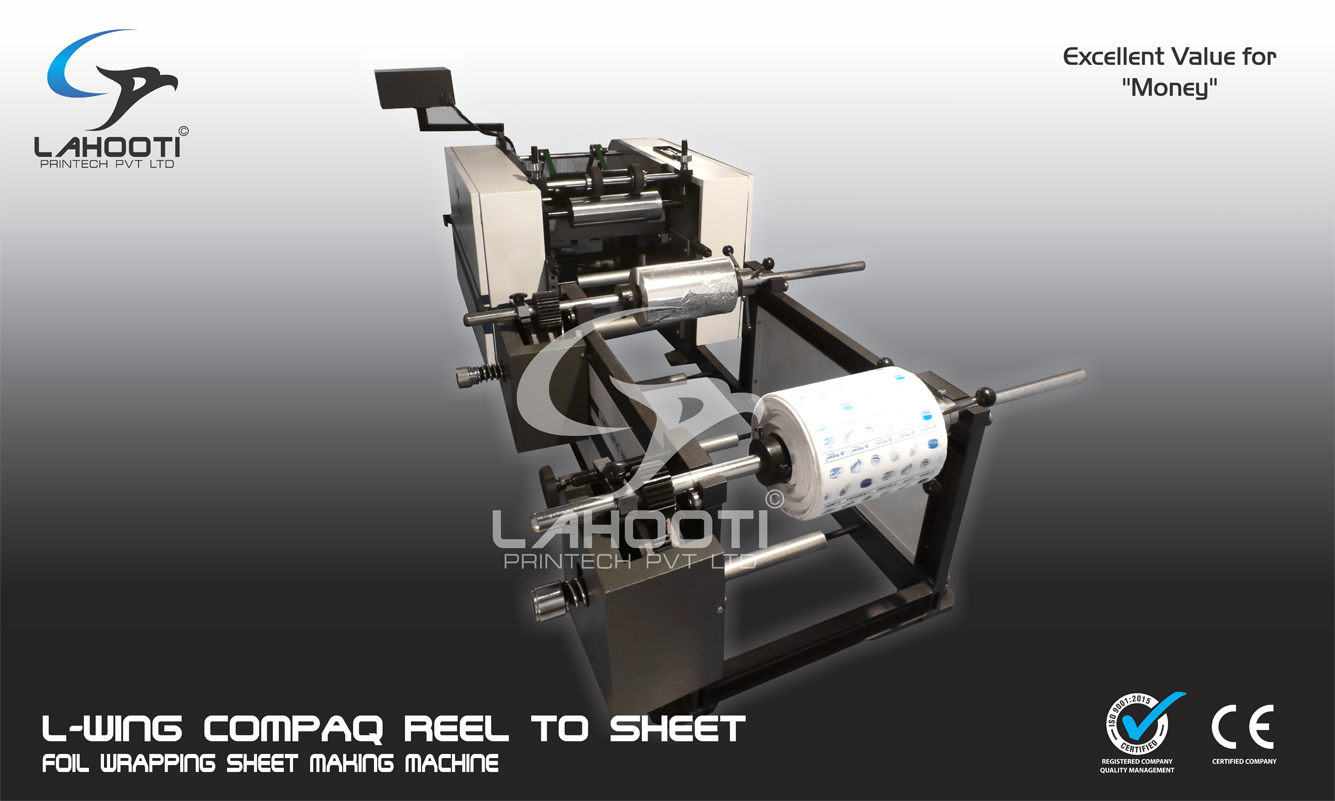

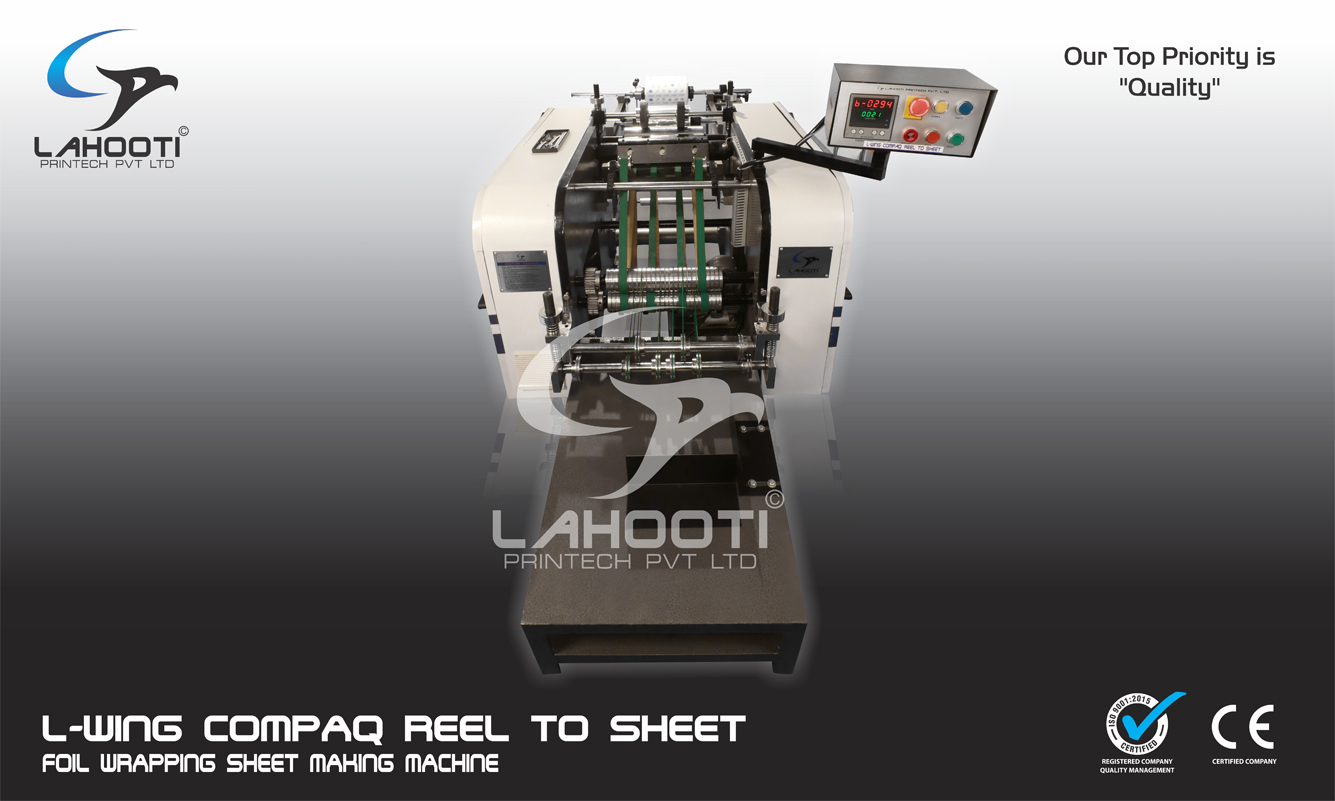

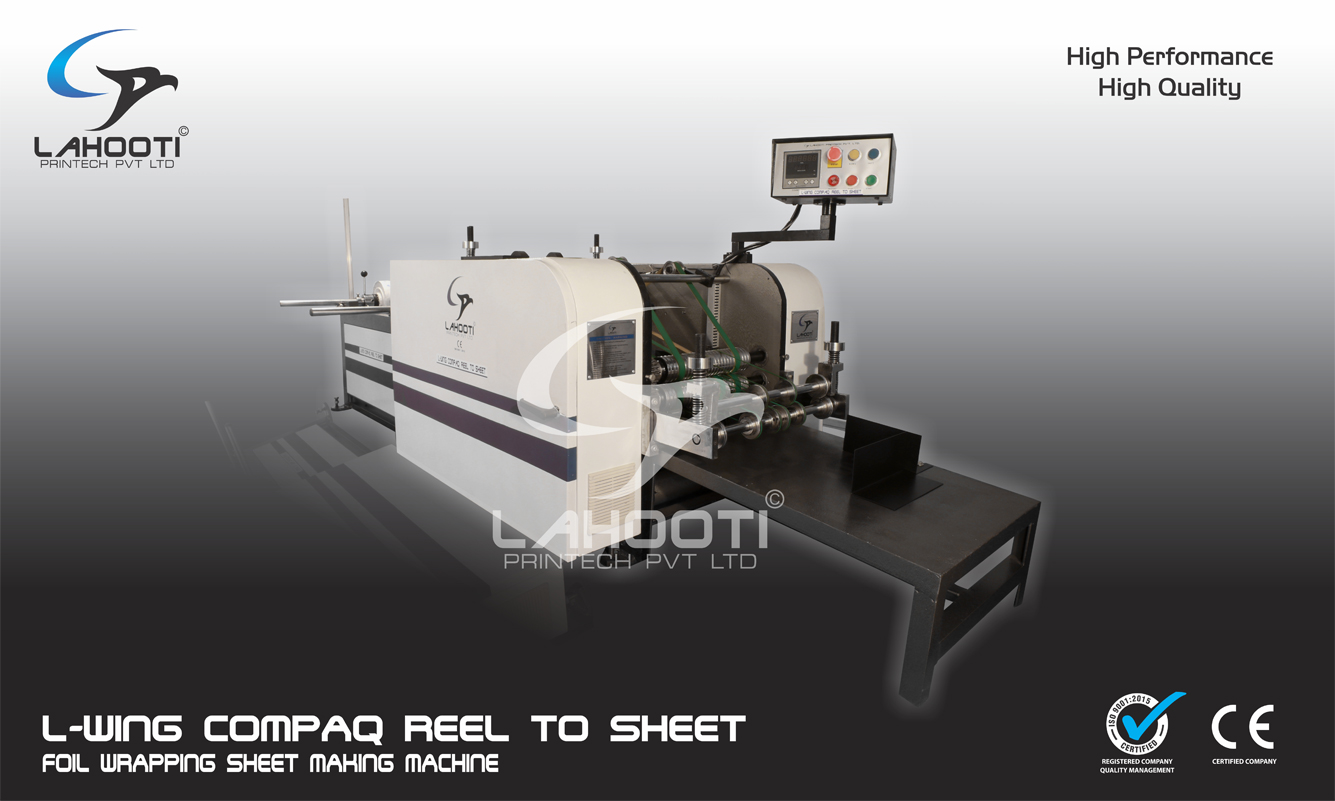

| Model Name | L-WING Compaq Reel tO Sheet |
| Machine Style | Foil Wrapping Sheet Making Machine |
| Raw Material Type | Aluminium Foil (9 to 20 Micron) & Butter Paper (Approx 40 gsm) |
| Raw Material Width | 300 mm / 12 inch (size can customised) |
| Unwinder Stand | Two (with clutch type) |
| Finish Product Size | 300 mm X 300 mm (as per requirement) |
| Jumbo Roll Loading Shaft | Manual |
| Counting | Digitally Variable Counting With Totalizer Amp Mtr. |
| Main Motor | 2 HP AC with AC Frequency Drive |
| Power Supply | Single Phase/Three Phase (as per buyer requirement) |
| Machine Feature | Noice Less | Viberation Less, Two Unwinder, High Quality Blade for Cutting, Customized Delivery Table, Imported Belts |
| Production | 200 pcs / min (approx) (as per operator skills & raw material quality) |
| Dimension of Machine | 10L x 4W x 3H (Ft.) |
| Machine Weight | 800 Kg (approx) |
