"Leading supplier of premium quality of making machines of paper napkin, tissue converting, toilet roll, aluminium foil, paper core slicer & allied equipments."

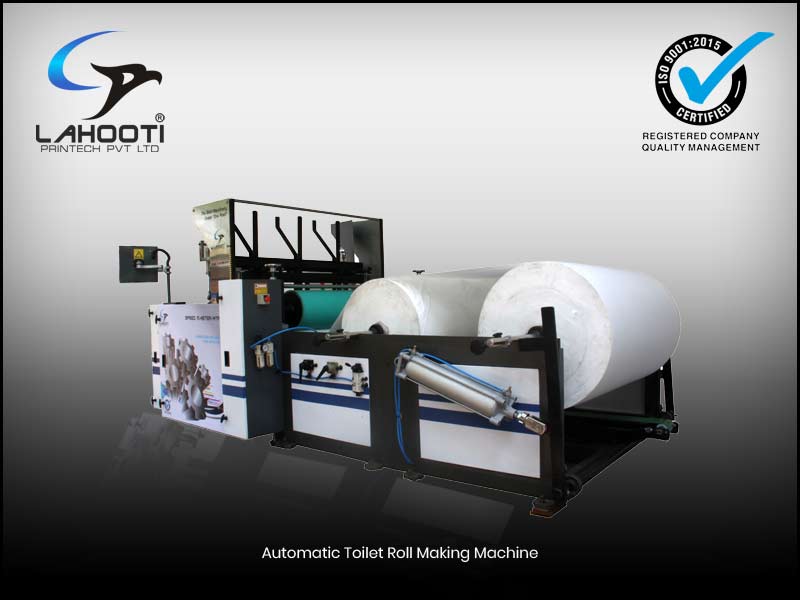

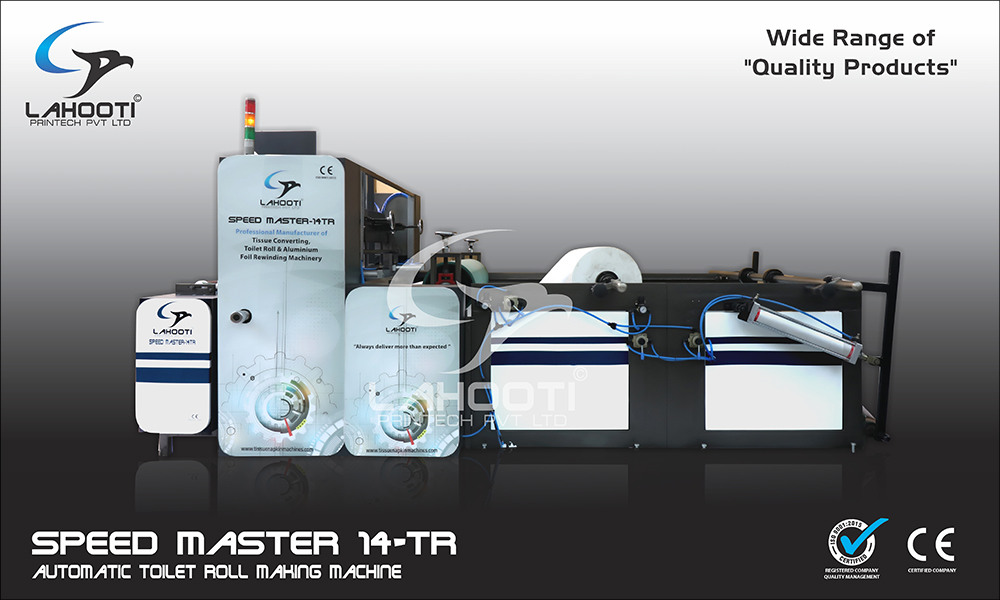

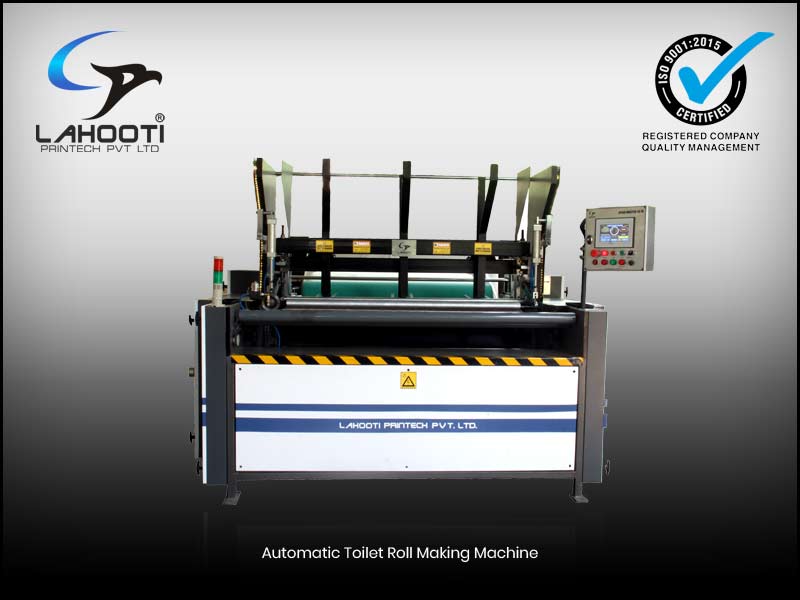

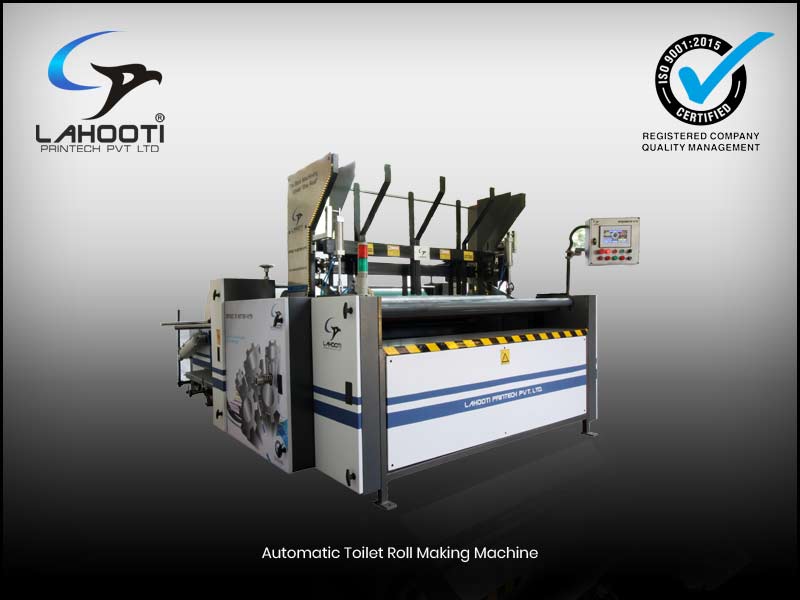

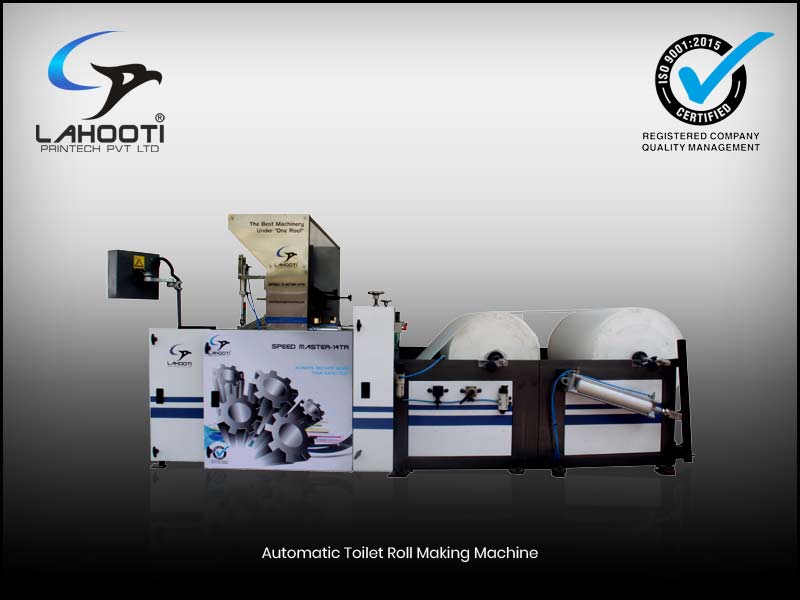

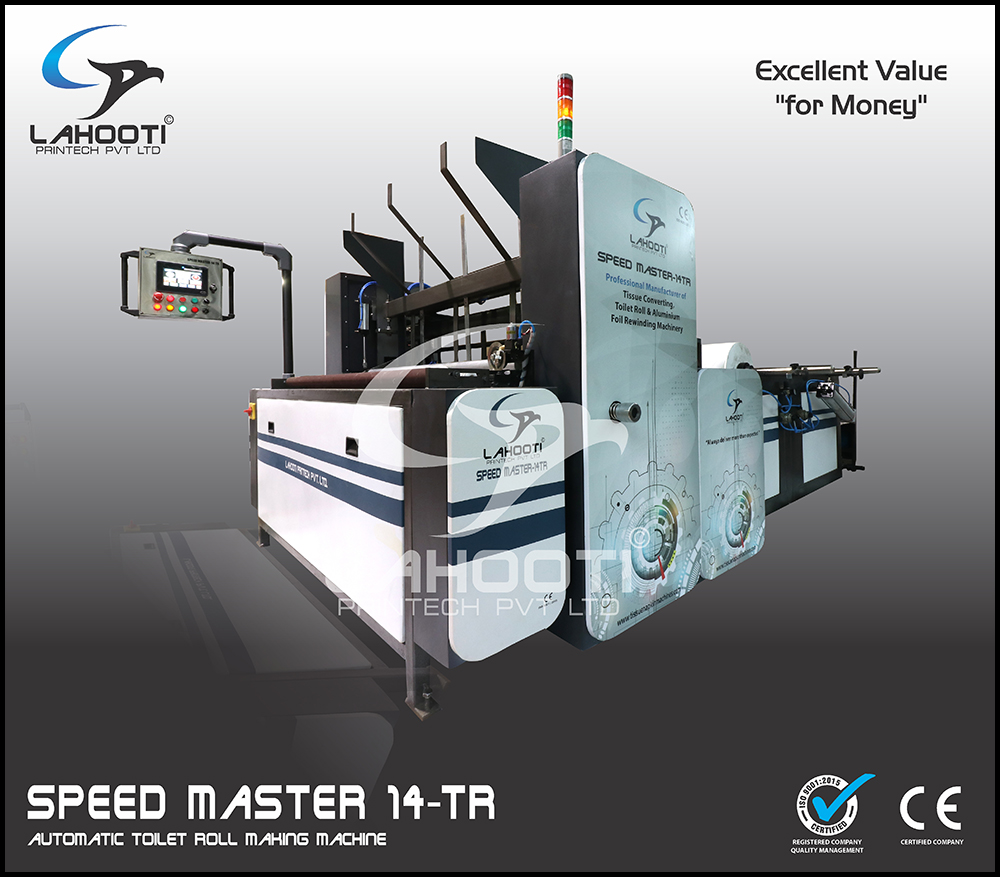

Automatic Toilet Roll Making Machine
As Per Following Specification, MODEL-L-WING SUPER-14 ROLL
Maximum Paper Width : 1420mm
Maximum Unwind Diameter : 1200mm
Maximum Rewinding Diameter : 254mm
Parent Roll Core Inner Diameter : 76mm
Raw Material : 1 or 2 Layer Tissue Paper
Reel Unwind Unit : Two
Perforation repeat : 100mm
Embossing unit : One ( metal to rubber)
Power Consumption : 5 HP ( Three Phase )
Control : PLC With Frequency Drive
Production / 8 hr. : 800-850 logs of 100 gsm approx 12000-15,000 toilet roll of 4 inch
Weight : 3000 Kg (Approx)
Machine Dimension : 10L x 9W x 6.5H (Ft.) Approx
Automatic paper cutting and gumming after rewinding.
Variable Speed Pully Drive for control the jumbo roll speed.
